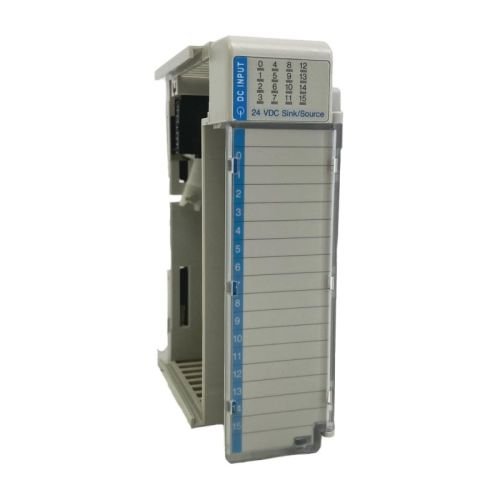

Allen Bradley 1769-IQ16 Compact Digital DC I/O Module

Name: Allen Bradley 1769-IQ16 Compact Digital DC I/O Module
Brand: Allen
SKU: 1769-IQ16/A
Price: 179.69 USD
Availability: InStock

$179.69 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Part Number: 1769-IQ16

Model: 1769 Compact Digital DC I/O Module

Brand: Allen Bradley

Condition: New & Original in Factory Packing

Factory Warranty: 12 Months

Model		1769-IQ16
Inputs		16 (8 points/group)
Voltage category		24V DV sink/source
Operating voltage range		10 30V DC @ 30°C (86°F) 10 26.4V DC @ 60°C (140°F)
Input delay, on		8 ms
Input delay, off		8 ms
Current draw @ 5.1V		115 mA
Heat dissipation, max		3.55 W
Off-state voltage, max		5V DC
Off-state current, max		1.5 mA
On-state voltage, min		10V DC
On-state current, min		2 mA
Inrush current, max		250 mA
Input impedance, nom		3 k
Isolation voltage		Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, input point to bus and group to group 75V DC working voltage (IEC Class 2 reinforced insulation)
Weight, approx		270 g (0.60 lb)
Dimensions (HxWxD), approx		118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
Slot width		1
Module location		DIN rail or panel mount
Power supply		1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating		8 modules
Terminal screw torque		0.6 N m (6 lb in)
Retaining screw torque		0.46 N m (4.1 lb in)
Wire size		(22 14 AWG) solid (22 16 AWG) stranded
Wire type		Cu-90 ?C (194 ?F)
IEC input compatibility		Type 1+
Replacement terminal block		1769-RTBN18 (1 per kit)
Replacement door label		1769-RL1 (2 per kit)
Replacement door		1769-RD (2 per kit)
Vendor ID code		1
Product type code		7
Product code		67
Enclosure type rating		None (open-style)
